Equipment Models & Technical Specifications

Model SDJH-160 SDJH-200 SDJH-250 SDJH-300 SDJH-350 SDJH-500

Rated Power (kW) 160 200 250 300 350 500

Input Voltage 3-phase 380V (all models)

MF Output Voltage 500V (all models)

Frequency 10–20 kHz (all models)

Motor Rotor Copper Ring Specifications

Parameter Low-Power Rotor

Diameter (mm) ≤469 ≤655 ≤799 ≤900 ≤1000

Thickness (mm) — ≤56 ≤60 ≤65 ≤70 ≤70

Welding Parameters

Parameter Value Range

Welding Time (min) 2–4 3–6 4–8 6–10 6–10 6–25

Welding Temperature (°C) 100–1050 (adjustable)

Complete Supply Scope

No. Item Specification

1 IGBT Digital Intelligent MF Power Supply 350 kW, 1 unit

2 Amorphous Core Isolation Transformer (with adjustable turns ratio) 3000 kVA, 1 unit

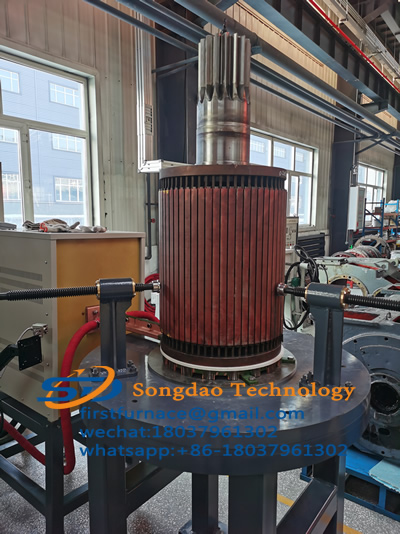

3 End‑Ring Brazing Induction Coils 2 coils total (for two sizes):

• Coil A: OD Φ375mm, ID 275mm, thickness 30mm; copper tube 30×50×5mm

• Coil B: OD Φ680mm, ID 580mm, thickness 30mm; copper tube 30×50×5mm

Magnetic flux concentrator: 0.1mm Japanese‑imported silicon steel laminations

4 Water‑Cooled Cables (connecting power supply to transformer) 2 pcs

5 Temperature Control System • Display: Kunlun Tongtai HMI, 1 unit

• Pyrometer: Optris (Germany), 1 unit

• PID holding controller, 1 set

6 Brazing Bed Worktables 2 units – fixed base (no rotation), each matched with one of the two coil sizes

7 Handheld Coaxial Transformer & Coil for Local/Spot Brazing 1 set

8 Industrial Water Chiller 40 HP, 1 unit

9 Cooling Water Piping & Installation 1 set – 304 stainless steel pipes DN50 with stainless steel valves; straight‑line distance from chiller to IGBT power supply within 5 meters

Chiller Selection by Model

Model SDJH‑160 SDJH‑200 SDJH‑250 SDJH‑300 SDJH‑350 SDJH‑500

Matching Chiller Capacity 10 HP 20 HP 25 HP 30 HP 40 HP 50 HP

Items to Be Supplied by the Buyer

Item Description

Copper busbars or cables connecting the transformer to the MF power supply To be provided by the buyer
